A-VDGS
Advanced Visual Docking Guidance System
Product name: AIDA-1(ANSE Intelligence Docking Assistance-1)
- The first successful local alternatives to the A-VDGS system
- In compliance with ICAO and FAA regulations and guidelines
- A-VDGS identifies the aircraft types that enter the arrival gate after landing and provides the pilot with precise docking information such as the closing rate distance and the Azimuth Arrow on the Pilot Display Unit (PDU)
For product details and quotation, please see the linked catalog or contact the division in charge (+82-2-6220-6167)
Terminal 2 Gate No.251 (Incheon Int' Airport)

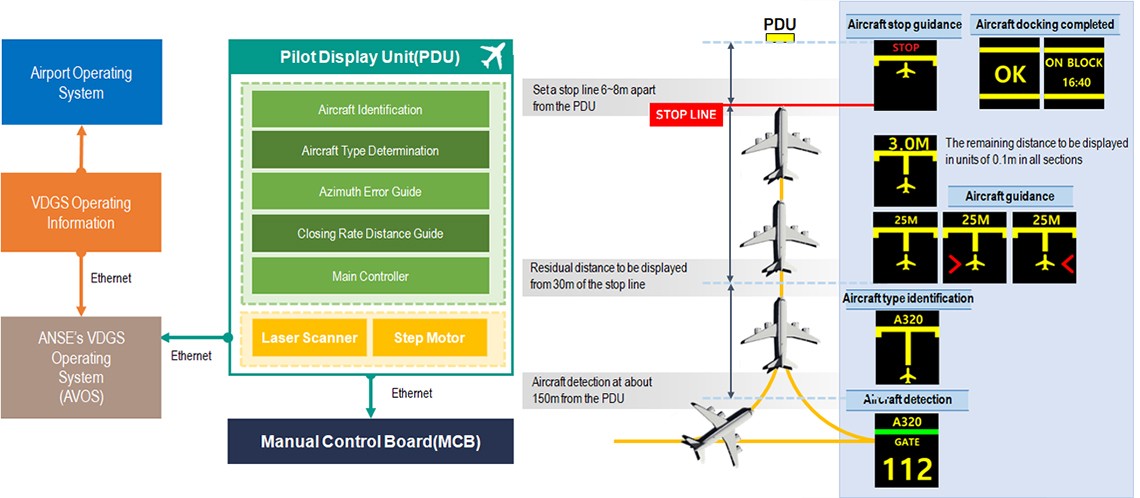

System Schematic
Aircraft stop guidance
1PDU
2MCB
3A-VDGS Operating System (AVOS)
Features
1 Aircraft tracking technology using 3D Laser Scanner
- Self- developing 2D laser scanner and motor combining module
- Self- developing the technology to collect and analyze 3D data and to track moving aircraft in real-time
- Registered five (5) patents for aircraft tracking technology

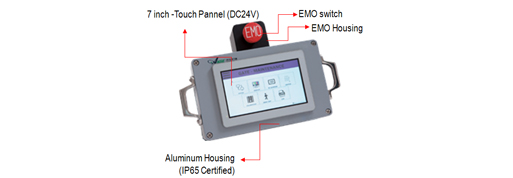

2 Various functions of the manual control board (MCB)
- Using pressure-sensitive touch technology
- Stable and highly expandable embedded OS
- Convenient user interface
3 LED Display
- Excellent visibility with high-intensity LED compared to competitive products
- User-defined message display on the 6-column and 7-row wide LED screen
- Using domestic LED modules
4 High Reliability
- Good Software Level 1 certified
- CE certified
- IP 65 rated (waterproof/dustproof)
5 Convenient operation
- Operation software and maintenance tool offered for remote air traffic service
6 Expandable and easy maintenance possible with localized products
- Easy to develop application software to reflect user requirements
- Less maintenance time and cost
